Robotics: Outdoor Robot

Description

Professional robot for outdoor logistics, escorting and surveillance. The robot is designed for outdoor operations and embeds a touchscreen, cameras and a joystick for an easy and intuitive control and reconfiguration. The robot can autonomously operate and safely navigates over the environments thanks to the on-board  laser scanner, ultrasound sensors and GPS.

Innovative features and advantages

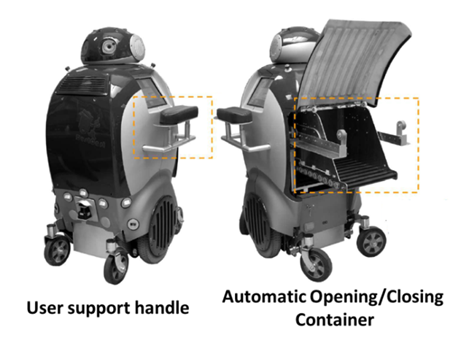

The Outdoor robot is designed on a previous platform named DustCart. It is an autonomous urban mobile robot for objects transportation (last-mile logistics) in cities and towns. Already tested in towns, it is a 6 wheels mobile robot instrumented with high resolution GPS, laser scanner for safety and autonomous navigation, touch screen and head with multicolor LED in the eyes. It has exceptional payload for multi purpose applications

Technical Details

Dimensions (WxLxH): 75x100x145cmm
Weigth: 150Kg
Speed: Max 4.5 Km/h
Autonomy: 10h
Payload: 50Kg

  • Automated Inner Stock Space
  • Six Wheels with Two Wheels Drive Control
  • Custom ABS Cover
  • Differential GPS (10 cm accuracy)
  • Frontal 2-D Laser Scanner
  • RGB Cameras
  • Ultrasound Sensors
  • Control Interfaces:
  • 15” Touch Screen
  • Web-Based Remote Control Interface
  • Autonomous docking to load/unload the paylod
  • Autonomous navigation
  • Obstacle Avoidance
  • Remote Control
  • Environmental 3-D mapping
  • Outdoor Logistics
  • Last Mile Products Delivery
  • Object Transportation
  • porterage in airports
  • Telepresence
  • Surveillance
